Stainless Steel Radial Insert Ball Bearing 60mm SUC212 For Agricultural Machinery

Ask Lasest Price
Brand Name :	Kentie
Model Number :	SUC212
Certification :	CE SGS ISO9001
Payment Terms :	Western Union, MoneyGram, T/T, D/P, D/A, L/C, Paypal
Supply Ability :	100000pcs per month
Delivery Time :	3-5 working days

Add to Cart

Product Details
Company Profile

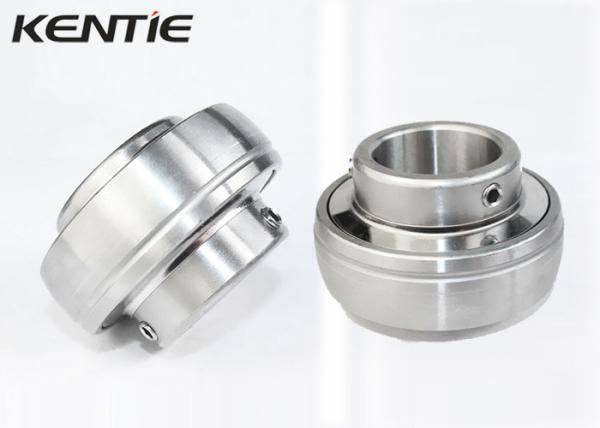

Stainless Steel Radial Insert Ball Bearing 60mm SUC212 For Agricultural Machinery

Stainless Steel Mounted Bearing Inserts SUC212 Radial Insert Ball Bearing

Kentie Insert Ball Bearing Features

Quick And Easy To Mount
The Different Locking Methods Enable Quick And Easy Mounting Of Insert Bearings Onto The Shaft.

Accommodate Initial Misalignment
The Spherically Shaped Outside Surface Enables Initial Misalignment By Tilting In The Housing.

Long Service Life
The Different Sealing Solutions Available Provide A Long Service Life For A Wide Variety Of Applications With High Contamination Levels.

Reduced Noise And Vibration Levels
Where High Requirements On Noise And Vibration Levels Are Important, Kentie Can Provide The Appropriate Shaft Locking Method.

(Kentie) Insert Ball Bearings are made with 420 stainless steel. These bearings come with Grub(Set) Screws, Are suitable for applications for both constant and alternating directions of rotation.

Specifications of SUC212 Insert bearing

Bearing Model	SUC212 Insert bearings
Outer Diameter	110mm
Inner Bore	60mm
Width	65.1mm
Material	Stainless Steel AISI420
Thread	M10*1.25
Lubrication	Grease
Package	Plastic bag+carton

Stainless Steel Insert Ball Bearings SUC 200 Series

Shaft Diameter	Model NO.	D1	B	S	C	Ca	G	ds	Cr(KN)	Cor(KN)	Weightkg
10	SUC201	40	27.4	11.5	14	3.4	4	M5×0.5	7.38	4.84	0.21
15	SUC202	40	27.4	11.5	14	3.4	4	M5×0.5	7.38	4.84	0.19
17	SUC203	40	27.4	11.5	14	3.4	4	M5×0.5	7.38	4.84	0.18
19.05	SUC204-12	47	31	12.7	17	3.7	5	M6×0.75	9.88	6.2	0.18
20	SUC204	47	31	12.7	17	3.7	5	M6×0.75	9.88	6.2	0.18
22.225	SUC205-14	52	34.1	14.3	17	3.9	5	M6×0.75	10.78	6.98	0.23
23.812	SUC205-15	52	34.1	14.3	17	3.9	5	M6×0.75	10.78	6.98	0.21
25	SUC205	52	34.1	14.3	17	3.9	5	M6×0.75	10.78	6.98	0.2
25.4	SUC205-16	52	34.1	14.3	17	3.9	5	M6×0.75	10.78	6.98	0.2
28.575	SUC206-18	62	38.1	15.9	19	5	5	M6×0.75	14.97	10.04	0.34
30	SUC206	62	38.1	15.9	19	5	5	M6×0.75	14.97	10.04	0.32
30.162	SUC206-19	62	38.1	15.9	19	5	5	M6×0.75	14.97	10.04	0.32
31.75	SUC207-20	72	42.9	17.5	20	5.7	7	M8×1	19.75	13.67	0.53
33.338	SUC207-21	72	42.9	17.5	20	5.7	7	M8×1	19.75	13.67	0.51
34.925	SUC207-22	72	42.9	17.5	20	5.7	7	M8×1	19.75	13.67	0.48
35	SUC207	72	42.9	17.5	20	5.7	7	M8×1	19.75	13.67	0.48
36.512	SUC207-23	72	42.9	17.5	20	5.7	7	M8×1	19.75	13.67	0.45
38.1	SUC208-24	80	49.2	19	21	6.2	8	M8×1	22.71	15.94	0.68
39.688	SUC208-25	80	49.2	19	21	6.2	8	M8×1	22.71	15.94	0.65
40	SUC208	80	49.2	19	21	6.2	8	M8×1	22.71	15.94	0.64
41.275	SUC209-26	85	49.2	19	22	6.4	8	M8×1	24.36	17.71	0.78
43.862	SUC209-27	85	49.2	19	22	6.4	8	M8×1	24.36	17.71	0.74
44.45	SUC209-28	85	49.2	19	22	6.4	8	M8×1	24.36	17.71	0.7
45	SUC209	85	49.2	19	22	6.4	8	M8×1	24.36	17.71	0.68
47.625	SUC210-30	90	51.6	19	23	6.5	10	M10×1.25	26.98	19.84	0.87
49.212	SUC210-31	90	51.6	19	23	6.5	10	M10×1.25	26.98	19.84	0.82
50	SUC210	90	51.6	19	23	6.5	10	M10×1.25	26.98	19.84	0.8
50.8	SUC211-32	100	55.6	22.2	24	7	10	M10×1.25	33.7	25.11	1.27
53.975	SUC211-34	100	55.6	22.2	24	7	10	M10×1.25	33.7	25.11	1.16
55	SUC211	100	55.6	22.2	24	7	10	M10×1.25	33.7	25.11	1.12
55.562	SUC211-35	100	55.6	22.2	24	7	10	M10×1.25	33.7	25.11	1.1
57.15	SUC212-36	110	65.1	25.4	27	7.6	10	M10×1.25	36.74	27.97	1.67
60	SUC212	110	65.1	25.4	27	7.6	10	M10×1.25	36.74	27.97	1.57
60.325	SUC212-38	110	65.1	25.4	27	7.6	10	M10×1.25	36.74	27.97	1.53
61.912	SUC212-39	110	65.1	25.4	27	7.6	10	M10×1.25	36.74	27.97	1.45
63.5	SUC213-40	120	65.1	25.4	28	8.5	10	M10×1.25	44.01	34.18	1.94
65	SUC213	120	65.1	25.4	28	8.5	10	M10×1.25	44.01	34.18	1.86
69.85	SUC214-44	125	74.6	30.2	32	8.9	12	M12×1.5	46.79	37.59	2.06
70	SUC214	125	74.6	30.2	32	8.9	12	M12×1.5	46.79	37.59	2.05
75	SUC215	130	77.8	33.3	32	9.2	12	M12×1.5	50.85	41.26	2.21
76.2	SUC215-48	130	77.8	33.3	32	9.2	12	M12×1.5	50.85	41.26	2.13
79.375	SUC216-50	140	82.6	33.3	33	9.5	12	M12×1.5	55.04	45.09	2.9
80	SUC216	140	82.6	33.3	33	9.5	12	M12×1.5	55.04	45.09	2.79
82.55	SUC217-52	150	85.7	34.1	35	10.2	12	M12×1.5	64.01	53.28	3.59
85	SUC217	150	85.7	34.1	35	10.2	12	M12×1.5	64.01	53.28	3.38
88.9	SUC218-56	160	96	39.7	38	11.2	12	M12×1.5	73.83	70.76	4.56
90	SUC218	160	96	39.7	38	11.2	12	M12×1.5	73.83	70.76	4.46
