SUS420 Stainless Steel Insert Ball Bearing SUC206 Anti - Rust With Locking Collars

Ask Lasest Price
Brand Name :	Kentie
Model Number :	SUC206
Certification :	CE SGS ISO9001
Payment Terms :	Western Union, MoneyGram, T/T, D/P, D/A, L/C, Paypal
Supply Ability :	100000pcs per month
Delivery Time :	3-5 working days

Add to Cart

Product Details
Company Profile

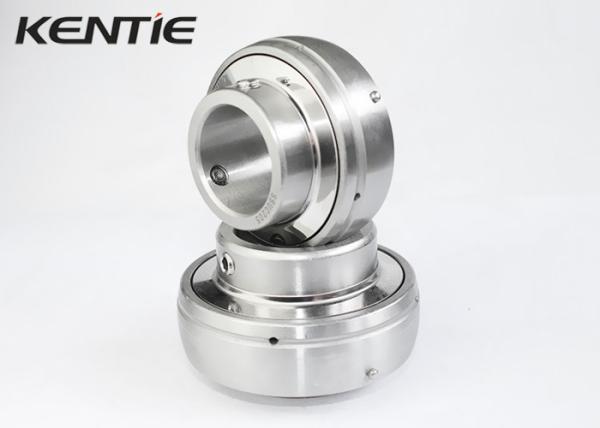

SUS420 Stainless Steel Insert Ball Bearing SUC206 Anti - Rust With Locking Collars

Premium SUS420 Stainless Steel Insert Ball Bearing SUC206 with Locking Collars

Bearing Model	SUC205 Insert ball bearing
Outer Diameter	62mm
Inner Bore	30mm
Width	38.1mm
Material	Stainless Steel SUS420
Thread	M6*0.75
Lubrication	Grease
Package	Plastic bag+carton

Quick And Easy To Mount
The Different Locking Methods Enable Quick And Easy Mounting Of Insert Bearings Onto The Shaft.

Accommodate Initial Misalignment
The Spherically Shaped Outside Surface Enables Initial Misalignment By Tilting In The Housing.

Long Service Life
The Different Sealing Solutions Available Provide A Long Service Life For A Wide Variety Of Applications With High Contamination Levels.

Reduced Noise And Vibration Levels
Where High Requirements On Noise And Vibration Levels Are Important, Kentie Can Provide The Appropriate Shaft Locking Method.

Shaft Diameter	Model NO.	D1	B	S	C	Ca	G	ds	Cr(KN)	Cor(KN)	Weightkg
10	SUC201	40	27.4	11.5	14	3.4	4	M5×0.5	7.38	4.84	0.21
15	SUC202	40	27.4	11.5	14	3.4	4	M5×0.5	7.38	4.84	0.19
17	SUC203	40	27.4	11.5	14	3.4	4	M5×0.5	7.38	4.84	0.18
19.05	SUC204-12	47	31	12.7	17	3.7	5	M6×0.75	9.88	6.2	0.18
20	SUC204	47	31	12.7	17	3.7	5	M6×0.75	9.88	6.2	0.18
22.225	SUC205-14	52	34.1	14.3	17	3.9	5	M6×0.75	10.78	6.98	0.23
23.812	SUC205-15	52	34.1	14.3	17	3.9	5	M6×0.75	10.78	6.98	0.21
25	SUC205	52	34.1	14.3	17	3.9	5	M6×0.75	10.78	6.98	0.2
25.4	SUC205-16	52	34.1	14.3	17	3.9	5	M6×0.75	10.78	6.98	0.2
28.575	SUC206-18	62	38.1	15.9	19	5	5	M6×0.75	14.97	10.04	0.34
30	SUC206	62	38.1	15.9	19	5	5	M6×0.75	14.97	10.04	0.32
30.162	SUC206-19	62	38.1	15.9	19	5	5	M6×0.75	14.97	10.04	0.32
31.75	SUC207-20	72	42.9	17.5	20	5.7	7	M8×1	19.75	13.67	0.53
33.338	SUC207-21	72	42.9	17.5	20	5.7	7	M8×1	19.75	13.67	0.51
34.925	SUC207-22	72	42.9	17.5	20	5.7	7	M8×1	19.75	13.67	0.48
35	SUC207	72	42.9	17.5	20	5.7	7	M8×1	19.75	13.67	0.48
36.512	SUC207-23	72	42.9	17.5	20	5.7	7	M8×1	19.75	13.67	0.45
38.1	SUC208-24	80	49.2	19	21	6.2	8	M8×1	22.71	15.94	0.68
39.688	SUC208-25	80	49.2	19	21	6.2	8	M8×1	22.71	15.94	0.65
40	SUC208	80	49.2	19	21	6.2	8	M8×1	22.71	15.94	0.64
41.275	SUC209-26	85	49.2	19	22	6.4	8	M8×1	24.36	17.71	0.78
43.862	SUC209-27	85	49.2	19	22	6.4	8	M8×1	24.36	17.71	0.74
44.45	SUC209-28	85	49.2	19	22	6.4	8	M8×1	24.36	17.71	0.7
45	SUC209	85	49.2	19	22	6.4	8	M8×1	24.36	17.71	0.68
47.625	SUC210-30	90	51.6	19	23	6.5	10	M10×1.25	26.98	19.84	0.87
49.212	SUC210-31	90	51.6	19	23	6.5	10	M10×1.25	26.98	19.84	0.82
50	SUC210	90	51.6	19	23	6.5	10	M10×1.25	26.98	19.84	0.8
50.8	SUC211-32	100	55.6	22.2	24	7	10	M10×1.25	33.7	25.11	1.27
53.975	SUC211-34	100	55.6	22.2	24	7	10	M10×1.25	33.7	25.11	1.16
55	SUC211	100	55.6	22.2	24	7	10	M10×1.25	33.7	25.11	1.12
55.562	SUC211-35	100	55.6	22.2	24	7	10	M10×1.25	33.7	25.11	1.1
57.15	SUC212-36	110	65.1	25.4	27	7.6	10	M10×1.25	36.74	27.97	1.67
60	SUC212	110	65.1	25.4	27	7.6	10	M10×1.25	36.74	27.97	1.57
60.325	SUC212-38	110	65.1	25.4	27	7.6	10	M10×1.25	36.74	27.97	1.53
61.912	SUC212-39	110	65.1	25.4	27	7.6	10	M10×1.25	36.74	27.97	1.45
63.5	SUC213-40	120	65.1	25.4	28	8.5	10	M10×1.25	44.01	34.18	1.94
65	SUC213	120	65.1	25.4	28	8.5	10	M10×1.25	44.01	34.18	1.86
69.85	SUC214-44	125	74.6	30.2	32	8.9	12	M12×1.5	46.79	37.59	2.06
70	SUC214	125	74.6	30.2	32	8.9	12	M12×1.5	46.79	37.59	2.05
75	SUC215	130	77.8	33.3	32	9.2	12	M12×1.5	50.85	41.26	2.21
76.2	SUC215-48	130	77.8	33.3	32	9.2	12	M12×1.5	50.85	41.26	2.13
79.375	SUC216-50	140	82.6	33.3	33	9.5	12	M12×1.5	55.04	45.09	2.9
80	SUC216	140	82.6	33.3	33	9.5	12	M12×1.5	55.04	45.09	2.79
82.55	SUC217-52	150	85.7	34.1	35	10.2	12	M12×1.5	64.01	53.28	3.59
85	SUC217	150	85.7	34.1	35	10.2	12	M12×1.5	64.01	53.28	3.38
88.9	SUC218-56	160	96	39.7	38	11.2	12	M12×1.5	73.83	70.76	4.56
90	SUC218	160	96	39.7	38	11.2	12	M12×1.5	73.83	70.76	4.46

FAQ

Q1: Are you a Manufacturer or trading company?
Answer: We are leading professional manufacturer of bearings since 1998 with ISO standards.

Q2: Can I get a sample to check out the quality?
Answer: Sure, free samples are available for stock products if you can pay for the shipping cost.

Q3: Can you do OEM to print my logo/brand on the products?
Answer: Yes, we can print your logo/brand on the products, you just need to send us your logo/brand files, we will show you how it looks like.We can also make a custom package to your request.

Q4: How soon can I expect my order to be finished?
Answer: We have regular stock for standard bearings that can be shipped right after your payment. It will take 15-60 days for a new production order, which depends on your order quantity.

Q5: What if I receive defective products for my order?
Answer: All our bearings are 100% inspected strictly before packing. If any defective products received, please provide photos and video to show us the problem and help us improve the quality. New products will be sent to you as replacement if the problem is product quality.
