Brand Name : | Kentie |
Model Number : | 696ZZ |
Certification : | CE/SGS/ISO/Germany Ryan |
Price : | US$0.244 |
Payment Terms : | T/T, Western Union,Paypal |
Supply Ability : | 500,000pcs per month |
Delivery Time : | 2-3 work days |
696ZZ Stainless Steel Deep Groove Ball Bearing Dynamic Load 1.35KN Chemical Resistance
Stainless steel bearing S696ZZ can be used in the working condition
of underwater and damp heat enviroment.
Stainless steel has the ability of resistance to atmospheric
oxidation-namely,stainless,also has in the medium containing
acid,alkali,salt corrosion-namely,the ability of corrosion
resistance.But the size of its ability to resisit corrosion was
with the chemical composition of steel itself,and each state,using
conditions and environmental medium type and change.
Specifications
Bearing Model | S696ZZ bearing |
Outer Diameter | 15mm |
Inner Bore | 6mm |
Width | 5mm |
Material | Stainless Steel 420 |
Seals | ZZ |
Lubrication | Grease |
Package | Plastic tube |
We specialized in manufacturing bearings more than 15 years, and
are able to supply good quality bearings,mainly for
us,Europe,Australian,and Canada,South American,New Zealand
etc.market.
If you have any interes in this bearing, please feel free to send
us an inquiry.Thanks!
Our Advantages
1. Professional Stainless Steel Bearing manufacturer since 1998
2. High quality with ISO standards
3. Low noise, low vibration, smooth rotation
4. High corrosion resistance, 72 hours salt spray test
5. Free OEM
Bearing NO | Bore(d) | Diameter (D) | Width (B) | Chamfer | Steel Balls | Load Rating | Weight | ||||||
mm inch | mm inch | mm inch | mm inch | Number | Size | Cr N | Cor N | KG | |||||
694 | 4 | 0.1575 | 11 | 0.4331 | 4 | 0.1575 | 0.15 | 0.006 | 7 | 2 | 960 | 345 | 0.0017 |
695 | 5 | 0.1969 | 13 | 0.5118 | 4 | 0.1575 | 0.2 | 0.008 | 8 | 2 | 1080 | 430 | 0.0023 |
696 | 6 | 0.2362 | 15 | 0.5906 | 5 | 0.1969 | 0.2 | 0.008 | 8 | 2.381 | 1730 | 670 | 0.0036 |
697 | 7 | 0.2756 | 17 | 0.6693 | 5 | 0.1969 | 0.3 | 0.012 | 9 | 2.381 | 1600 | 710 | 0.005 |
698 | 8 | 0.315 | 19 | 0.748 | 6 | 0.2362 | 0.3 | 0.012 | 7 | 3.5 | 2240 | 910 | 0.0076 |
699 | 9 | 0.3543 | 20 | 0.7874 | 6 | 0.2362 | 0.3 | 0.012 | 9 | 2.381 | 1720 | 840 | 0.0085 |
6900 | 10 | 0.3937 | 22 | 0.8661 | 6 | 0.2362 | 0.3 | 0.012 | 12 | 2.381 | 2700 | 1270 | 0.01 |
6901 | 12 | 0.4724 | 24 | 0.9449 | 6 | 0.2362 | 0.3 | 0.012 | 9 | 3.5 | 2890 | 1640 | 0.012 |
6902 | 15 | 0.5906 | 28 | 1.1024 | 7 | 0.2756 | 0.3 | 0.012 | 10 | 3.969 | 4320 | 2250 | 0.018 |
6903 | 17 | 0.6693 | 30 | 1.1811 | 7 | 0.2756 | 0.3 | 0.012 | 11 | 3.5 | 4590 | 2550 | 0.019 |
6904 | 20 | 0.7874 | 37 | 1.4567 | 9 | 0.3543 | 0.3 | 0.012 | 11 | 3.969 | 6370 | 3680 | 0.038 |
6905 | 25 | 0.9843 | 42 | 1.6535 | 9 | 0.3543 | 0.3 | 0.012 | 13 | 3.175 | 6660 | 4180 | 0.044 |
6906 | 30 | 1.1811 | 47 | 1.8504 | 9 | 0.3543 | 0.3 | 0.012 | 14 | 4.763 | 7240 | 5010 | 0.05 |
6907 | 35 | 1.378 | 55 | 2.1654 | 10 | 0.3937 | 0.6 | 0.024 | 14 | 5.556 | 10390 | 7160 | 0.75 |
6908 | 40 | 1.5748 | 42 | 2.4409 | 12 | 0.4724 | 0.6 | 0.024 | 14 | 6.747 | 13020 | 9200 | 0.118 |
6909 | 45 | 1.7717 | 68 | 2.6772 | 12 | 0.4724 | 0.6 | 0.024 | 15 | 6.747 | 13490 | 10130 | 0.128 |
6910 | 50 | 1.9685 | 72 | 2.8346 | 12 | 0.4724 | 0.6 | 0.024 | 16 | 6.747 | 13900 | 10900 | 0.133 |

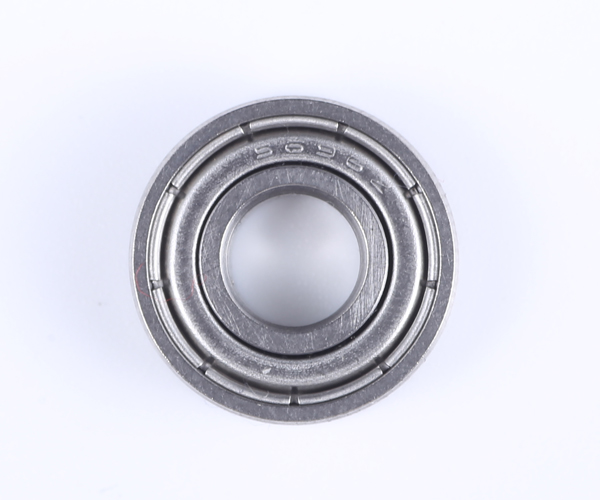

Detailed Pictures
![]() |
